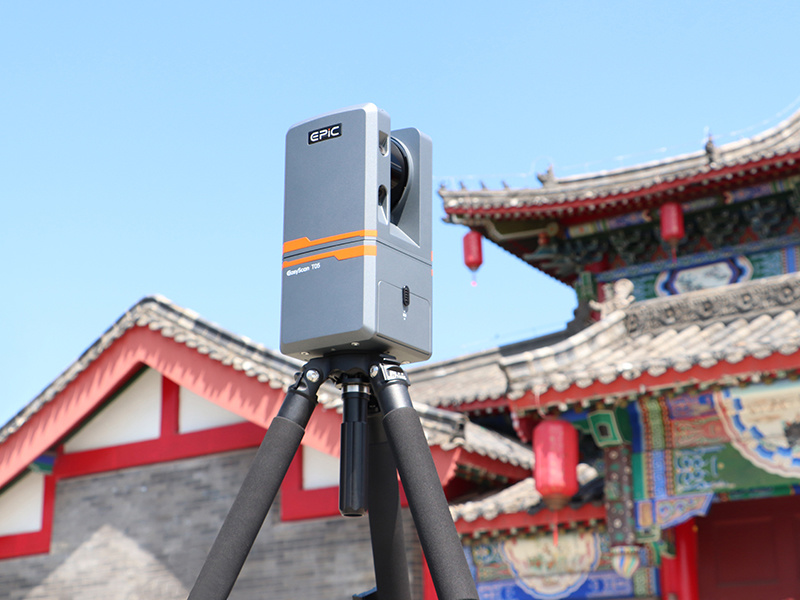

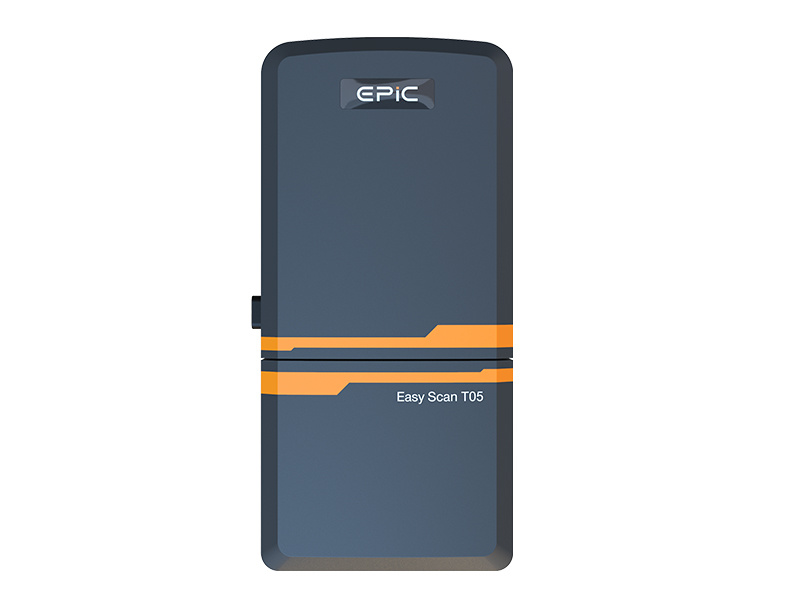

EasyScan T05

EasyScan T05

The overall design of the system is extremely lightweight, and a variety of sensors are highly integrated, which can ensure the rapid and effective acquisition of high-precision true color point clouds under different application scenarios, and lead a new development direction of the terrestrial 3D laser scanner.

Inquiry

marketing@epiclidar.cn

Product Features

High Integration		With three embedded high-definition cameras and one smart battery.

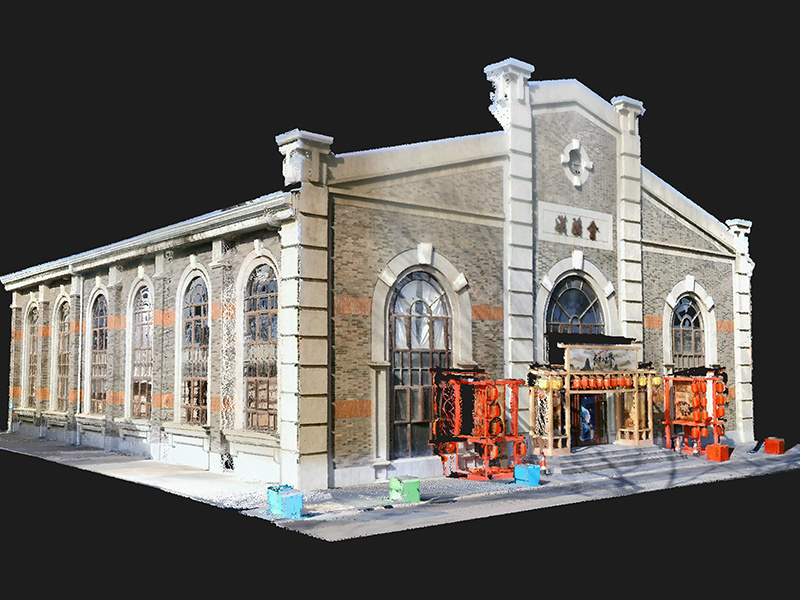

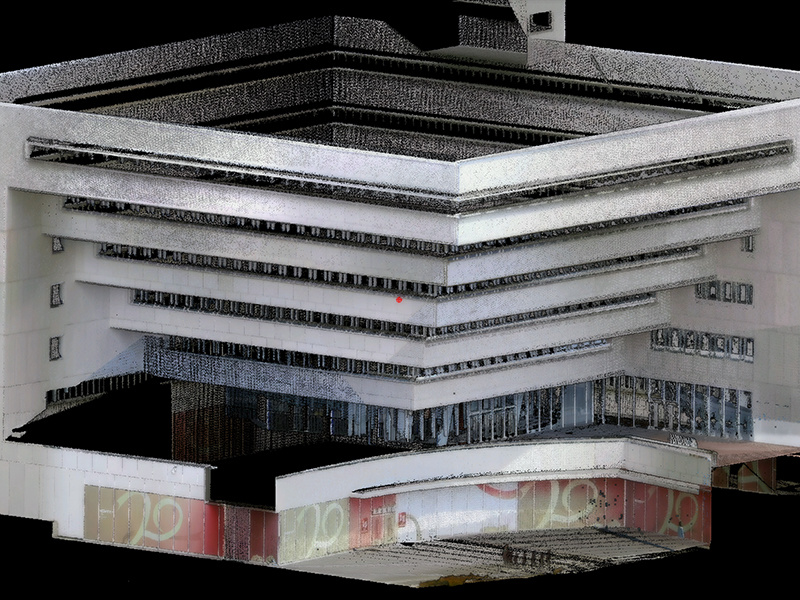

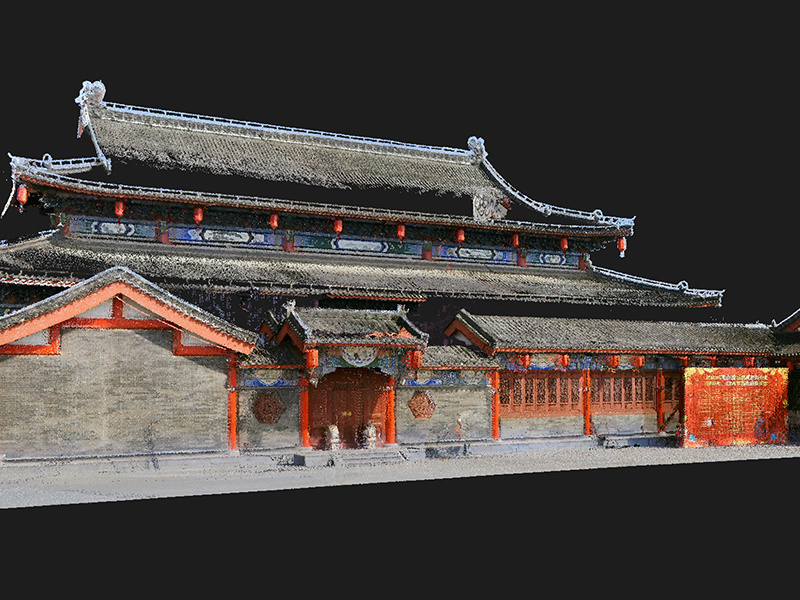

High Accuracy		5mm point cloud accuracy and pixel-level colorization.
Intelligent Workflow		One-click to collect data, it can calculate and splice data automatically.

System Parameter

Operation Performance

Laser Scanning Unit

Pamoramic Camera

IMU

Weight	3.7kg
Dimension	L125W124H265mm
Average Power Consumption	20W
Battery Duration	2h For single Battery
FoV	Horizontal 360°, Vertical 268°
Data Storage	U-Disk 64GB
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Aluminum Alloy tripod	Weight:1.92kg Safe Load:8kg max.Height:1.49m

Precision	1cm@100m
Ranging Accuracy	5mm@10m,8mm@30m,Icm@100m
Minimum Data Collection Time	60s
Point Density	10m:>25,000pts/m² 30m:>3,200pts/m² 100m:>300pts/m²

Scan Principle	ToF
Laser Class	Class I
Wavelength	905nm
Measurement Range	0.5m～100m@20%
Scanning Point Frequency	320,000pts/s

FoV	360°
Image Resolution	66MP

Commodity name： EasyScan T05
Commodity ID： EasyScan T05

Product Application

Infrastructure Management

Digital Plant

Underground

BIM
