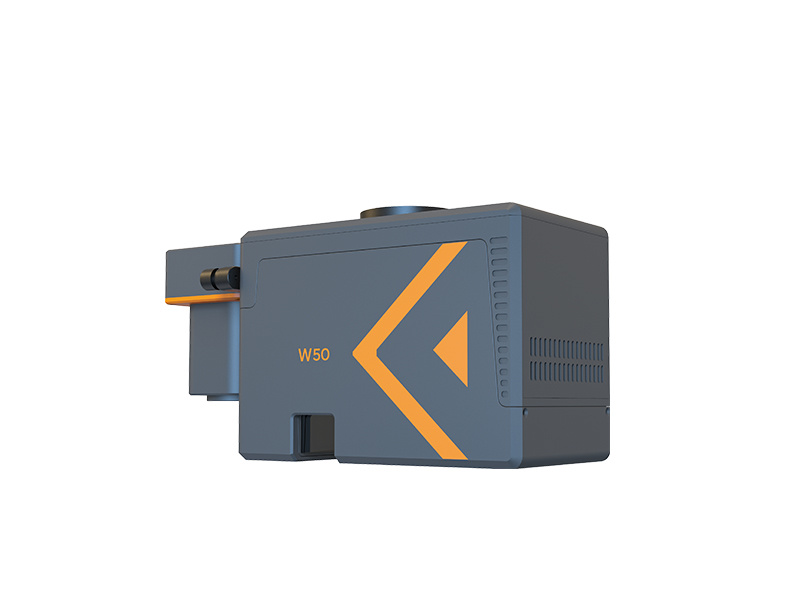

EliteScan W50

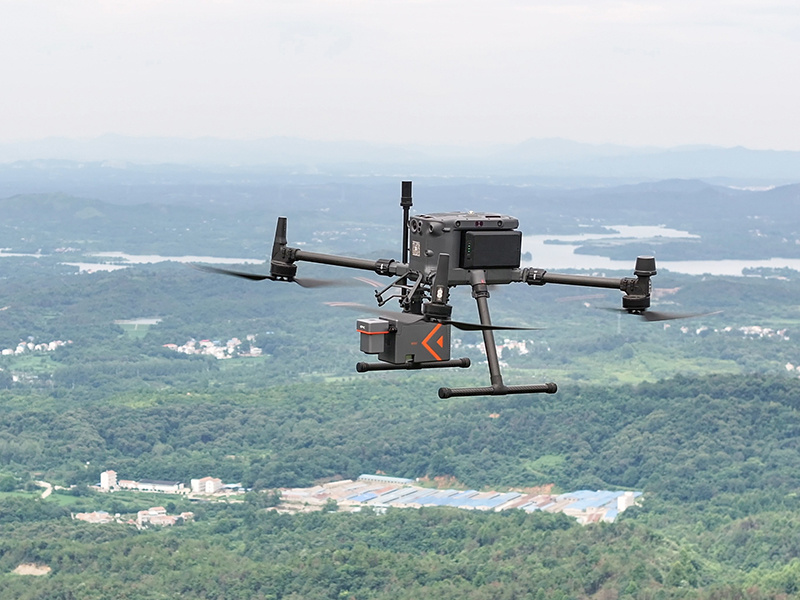

W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU, and aerial camera. It features a long scanning range, lightweight, strong penetration, and higher working efficiency than ever, which can deal with the most challenging and complex scenarios.

Product Features

Light Weight

Highly integrated with an overall weight of 1.4kg only

Long Range

Typical flying height up to 400m.

Strong Penetration

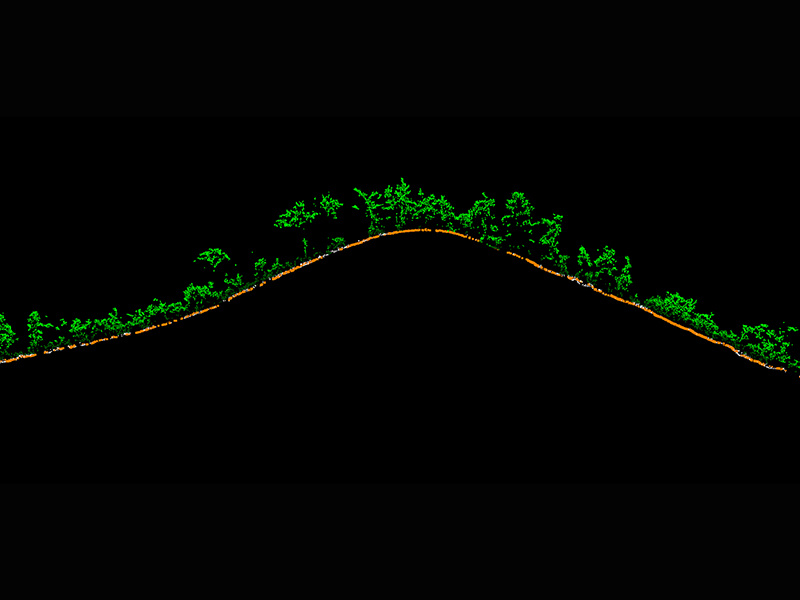

With 7 echo returns, it can easily penetrate vegetation to acquire ground points.

High Efficiency

Wider FoV and higher working efficiency.

System Parameter

System Parameter

Operation Performance

Laser Scanning Unit

Pamoramic Camera

IMU



Weight

1.21kg(Camera not Included)

1.40kg(Including 26 Megapixel Camera)

Dimension

L156*W90*H117mm

System Accuracy

Plane:5cm@150m /Elevation:3cm@150m

Average Power Consumption

45W(Typical Value)

Power Supply

9~36V DC

Quick-release Interface

DJI Skyport/ EPiC Quick-release Interface customized lnterface

Data Storage

High-speed USB Flash Drive (256GB)

Operating Temperature

-20℃~50℃

Storage Temperature

30℃~60℃

Compatible Platform

DJI M300/ M350/ Multirotor / Fixed Wing





Scanning Principle

Rotative Prism

Laser Class

Class Ⅰ

Wavelength

1550nm

MeasurementRange

500m@20%/ 1000m@80%Reflectivity

Flight Height(Operating)

350m@20%/ 450m@35%Reflectivity

Ranging Accuracy

5mm

FoV

90°

Angle Measurement Resolution

0.0018°

Scanning Speed

90~300Lines/sec

Scanning Point Frequency

100~1000 kHz

Echo Mode

≥ 7 Returns



GNSS Signal Tracking

BDS, GPS, GLONASS, GALILEO

Positioning Accuracy(Post-processing)

Plane: 1cm/ Elevation: 2cm

Position Sampling Rate

5HZ

Attitude Accuracy(Post-processing)

Heading:0.04°, Pitch/Roll:0.008°

Attitude Sampling Rate

500HZ



Effective Pixels

26MP

  45MP

Sensor Dimension

L23.5*W15.6mn

  L36xW24mm

Image Resolution

6240x4168

  8192x5468

Image Width FoV

73°

90°

GSD

2.3cm@100m Flight Height

2.1cm@100m Flight Height

  • Commodity name: EliteScan W50
  • Commodity ID: EliteScan W50

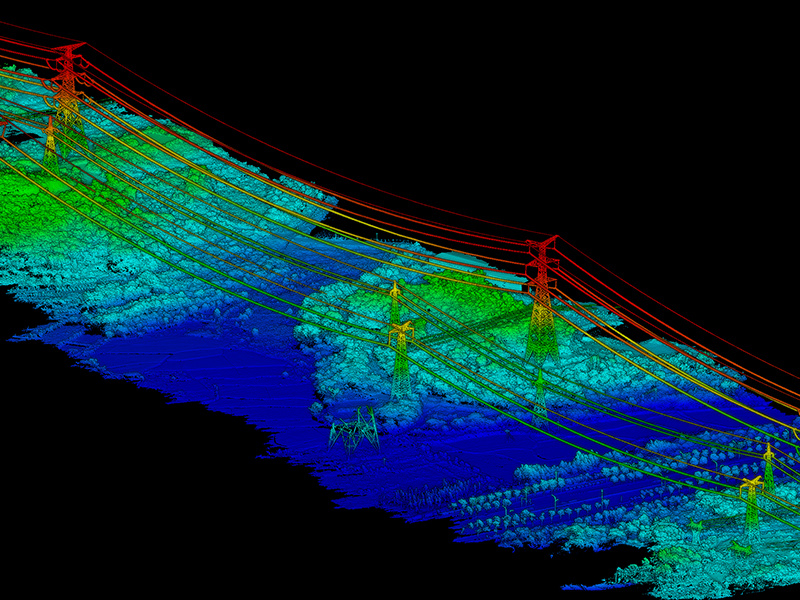

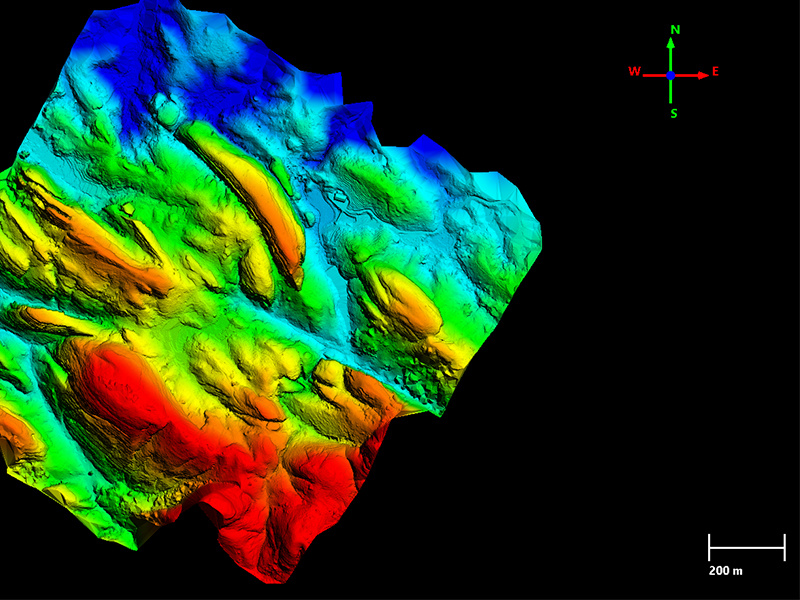

Product Application
