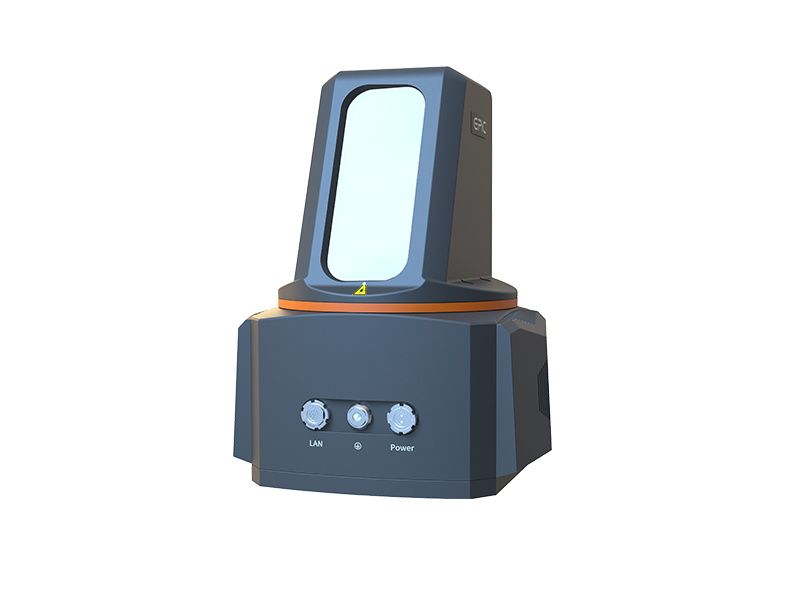

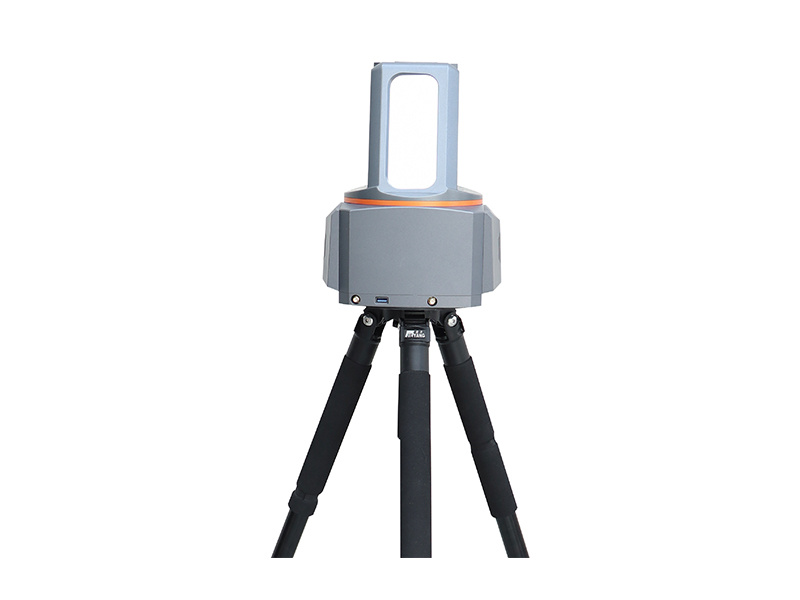

EliteScan T1000

EliteScan T1000

A panoramic view of thousand miles

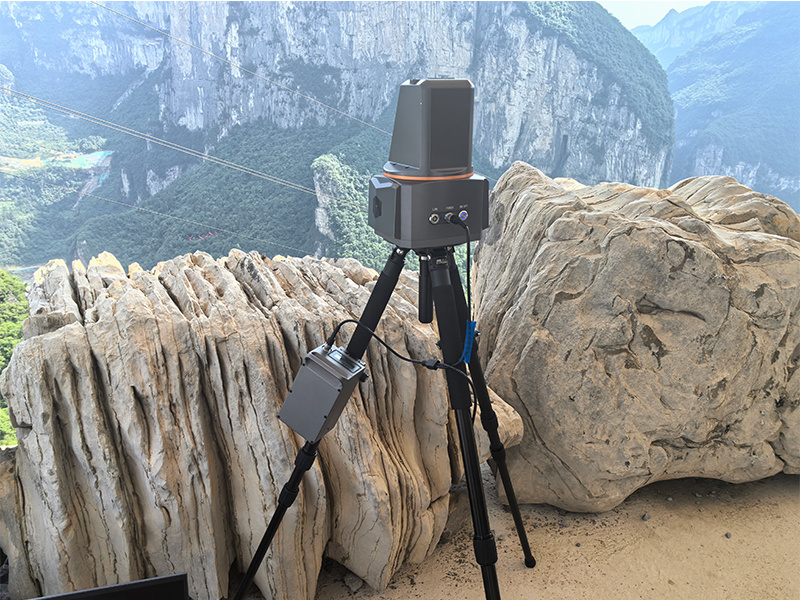

The long range 3D laser scanner is designed and developed independently. The whold system is compact and portable, which can collect the 3D data of the ground in a wider range quickly, to ensure the high-quality point cloud collection even in complex and challenging environments.

Inquiry

marketing@epiclidar.cn

Product Features

Long Range		Excellent ranging ability, with a wider measurement range up to 1500m
High Precision		Millimeter level ranging accuracy, delivering more precise data with accuracy ≤5mm@100m
Fully Autonomous		Fully independent intelligent property rights, with guaranteed upgrades.
Easily Extendable		Supports customized integration, provides SDK for secondary development.

System Parameter

Operation Performance

Laser Scanning Unit

Pamoramic Camera

IMU

Weight	≤7kg
Dimension	L205×W192xH268mm
Power Supply	20~33V DC
Average Power Consumption	<50W
Data Communication Interface	GigE
Humidity	Non-condensing
Operating Temperature	-20℃~+50℃
Storage Temperature	-30℃~+60℃
Dual-axis tilt sensor range	±5°

Ranging Method	Pulse Ranging
Laser products Class	Class I
Scanning Rate	1000khz
Max. Measurement Range	≥1000m@R=20%
Min. Measurement Range	1.5m
Ranging Accuracy	≤5mm@100m
Vertical FoV	100°（-40°~+60°）
Horizontal FoV	360°
Scan Speed	Vertical:3-150lines/sec, Horizontal: max. 18°/sec
Angular Measurement Resolution	Horizontal/Vertical≤0.001°

Effective pixels	approximately 100 million
Field of view	360° x 110°
Weight	approximately 680g
Storage method	built-in SD card 128GB
Expandable	RTK fixed interface

Commodity name： EliteScan T1000

Product Application

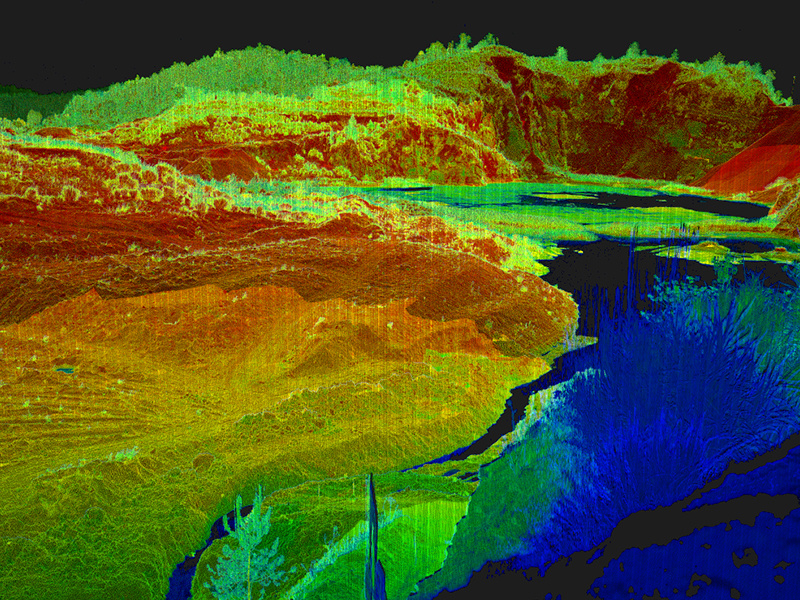

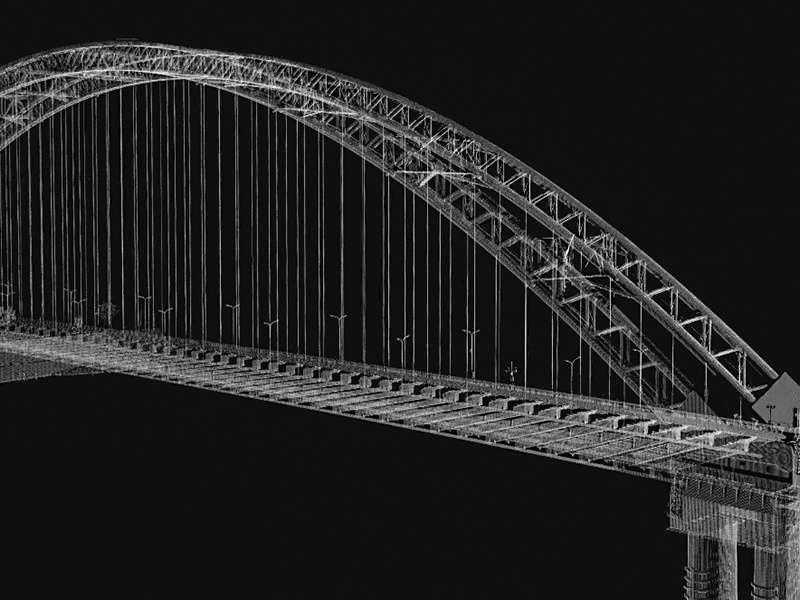

Deformation Monitoring

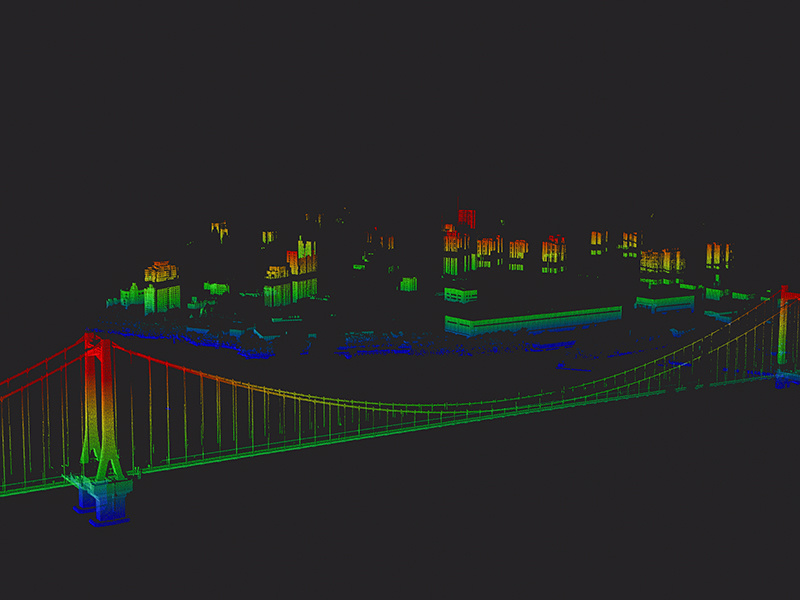

Digital City

Digital Cultural Heritage

Tunneling
