EasyScan M05

EasyScan M05

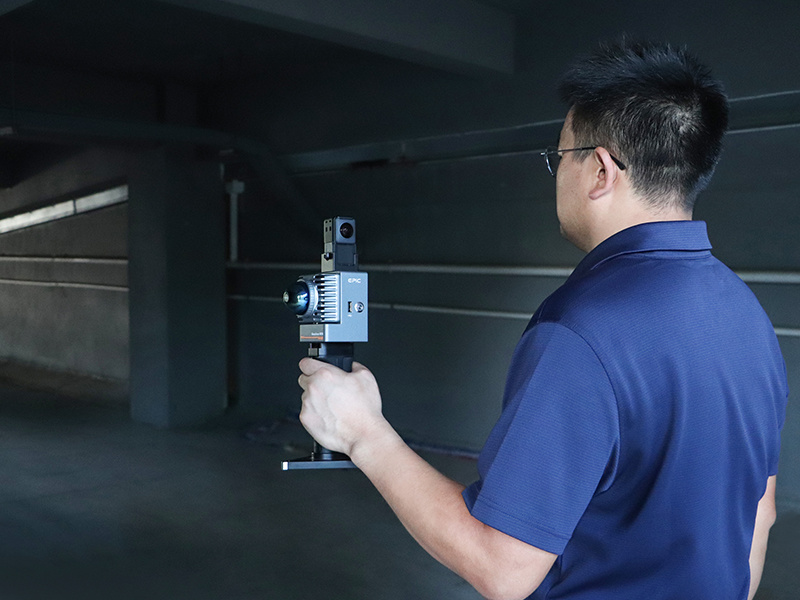

M05 adopts a more lightweight and compact industrial design, featuring a brand new hemispherical scanning mode, devoid of a single cable. Its powerful SLAM algorithm makes data collection more effortless and reliable for operators, acquiring point cloud, image, and GNSS data in one go, catering to the application, and scenario demands of diverse customer groups.

Inquiry

marketing@epiclidar.cn

Product Features

Ultimate Simplicity		Super lightweight, compact, cable-free design, less than 1KG
Easy to Operate		Initiating scan upon power on, user-friendly for beginners
Reliable Result		Hemispherical scanning, extensive coverage, high data credibility

System Parameter

Operation Performance

Laser Scanning Unit

Pamoramic Camera

IMU

Main body Weight	1010g( Including camera and handle battery)
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
System Consumption	20W
Power Supply	12~17.6V DC
Battery Duration	1.5h for single battery
Data Storage	USB-disk 64GB
Compatible Platform	Handheld
Charging Interface	Type-C

Max. Measurement Range	40m@R=10%; 70m@R=80%
Laser Class	Class I
FoV	Horizontal 360°, Vertical -7~ 52°
Wavelength	905nm
Scanning Point Frequency	200,000pts/s
Relative Accuracy	≤5cm
Absolute Accuracy	≤8cm

Camera FoV	Panoramic camera
Camera Resolution	16 MP

Commodity name： EasyScan M05
Commodity ID： EasyScan M05

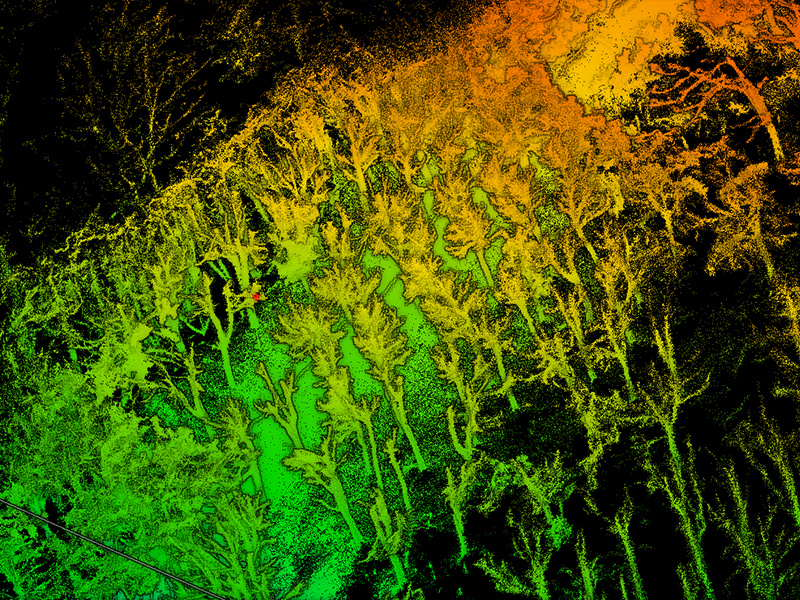

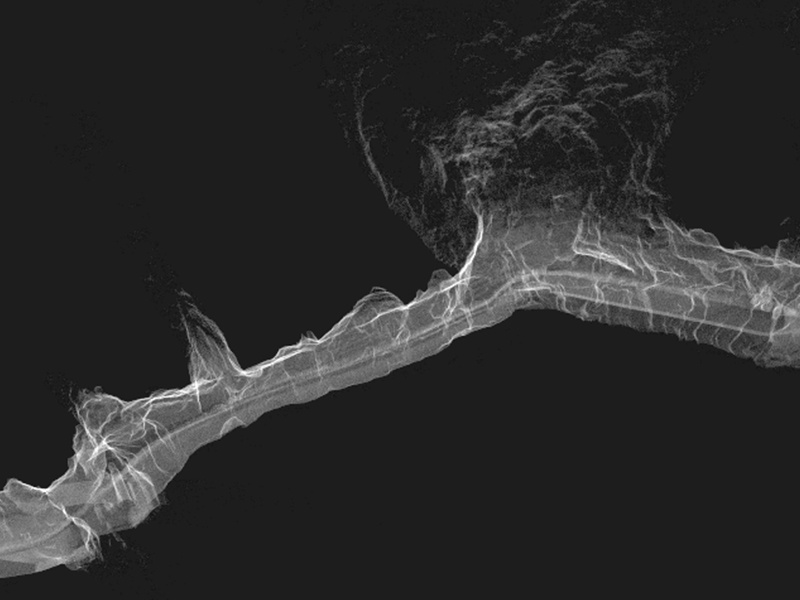

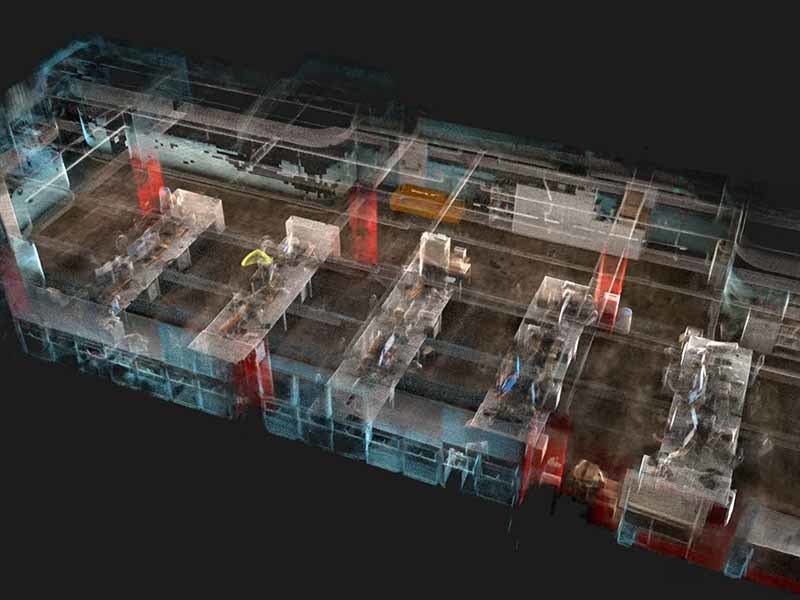

Product Application
